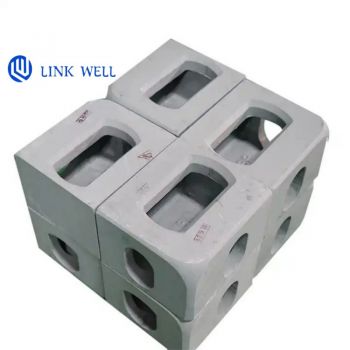

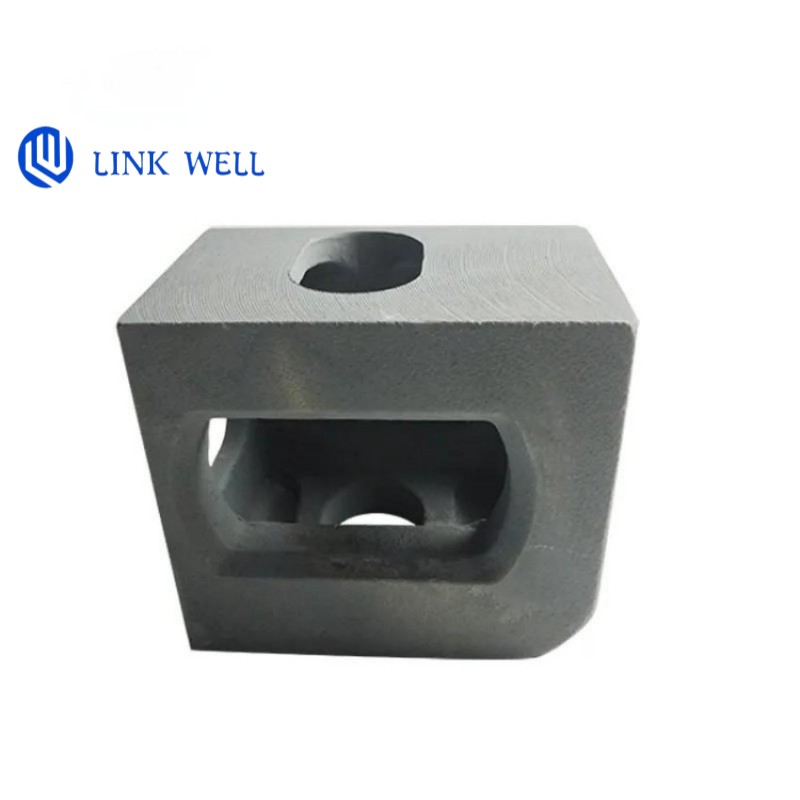

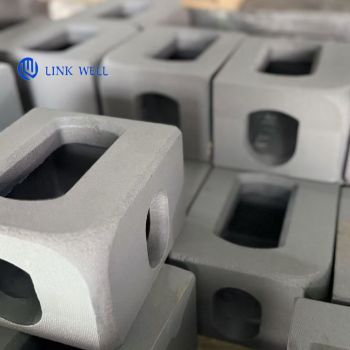

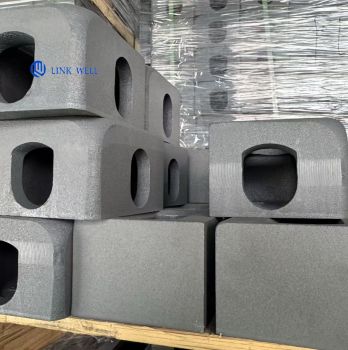

Manufactured to exacting international standards, our Container Corner Castings serve as the critical interface points for secure container handling, stacking, and transportation. Available in carbon steel or alloy steel with a standardized 11kg weight, these components feature zinc-plated or sandblasted surface treatments and are offered in both standard ISO dimensions and custom specifications.

Technical Specifications

Parameter:Specification

Material Options:Carbon Steel / Alloy Steel

Weight:11kg (±2% tolerance)

Surface Treatment:Hot-Dip Galvanized (50-80μm) / Sandblasted

Load Capacities:Vertical: 150kN   Lateral: 75kN

Standard Compliance:ISO 1161, CSC, DNV-GL Certified

Customization:Non-standard dimensions/specs available

Material Excellence

Carbon Steel Version: Cost-effective solution for standard applications

Alloy Steel Upgrade: Enhanced strength-to-weight ratio for heavy-duty use

11kg Optimized Weight: Balanced for handling efficiency without compromising strength

Surface Protection

Hot-Dip Galvanizing: Superior corrosion resistance (2,000+ hour salt spray)

Sandblasted Finish: Ideal for paint adhesion in specialized applications

Configuration Flexibility

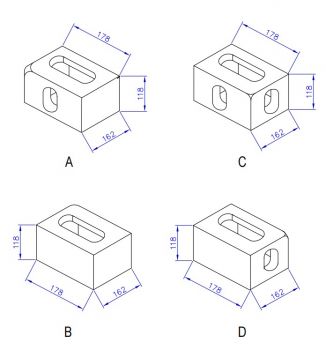

Standard Sizes: Exact ISO 1161 compliance (178×162mm top/117×110mm bottom)

Custom Engineering: Modified dimensions, hole patterns, or thickness available

Quality Assurance

100% dimensional verification

Non-destructive testing (MPI/UT)

Material certificates with traceability

Third-party inspection available
