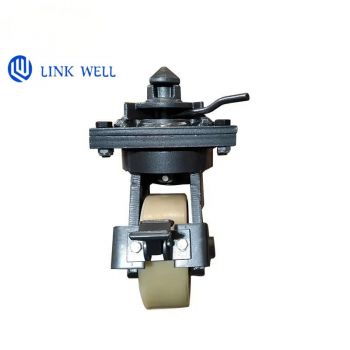

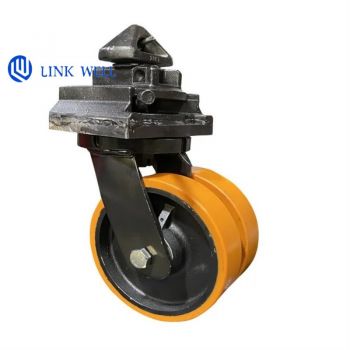

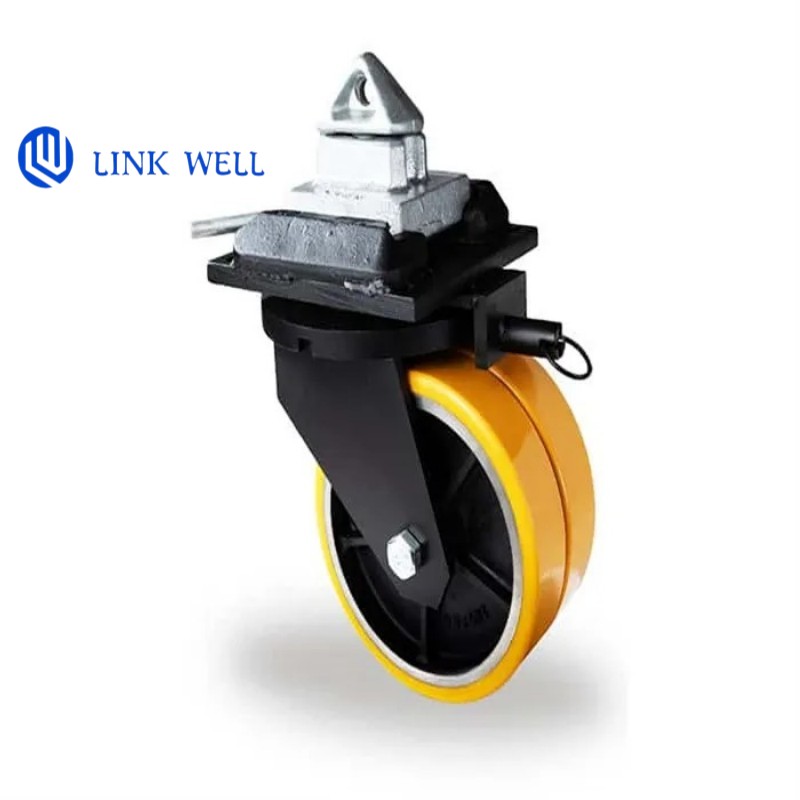

This Container Wheels are designed for Shipping Container and Container House only.
The wheel have Twist lock on the top, so that it can be locked the container quickly via container bottom corner castings.

Type of brake: brake and non-brake sets.

Specification: of ISO Container Wheels: Load capacities range from 2,500LB to 20,000LB

Sizes: 6 inches, 8 inches, 10 inches and 12 inches.

The 6-inch tires can bear a load ranging: 2000kgs to 2800kgs per piece.

The 8-inch tires can bear a load ranging: 2400kgs to 3500kgs per piece.

The 10-inch tires can bear a load of 4000kgs per piece.

Adaptive Design for Harsh Environments:Available in standard wheel diameters: our casters fit all container base frame configurations. The modular mounting plate (120x160mm standard) is compatible with ISO container corner castings and custom trailer platforms, while optional anti-vibration pads reduce shock transmission by 40% during transport over uneven terrain.

Casters: Can turn 360° and are equipped with a braking system

Material:​Frame: Forged Carbon Steel (Grade Q345B) – 345MPa yield strength​
Wheel Core: Ductile Iron (GGG50) with Polyurethane (PU) Tread (Shore A 95) – 30% higher abrasion resistance than standard rubber​
Axle: Alloy Steel (40Cr, quenched) – HRC 45-50 hardness for fatigue resistance​
Surface Treatment:​Powder Coating (ISO 12944 C5-M Compliant) – 1,000+ hours salt spray resistance​
Optional Hot-Dip Galvanization: Ideal for marine port environments (ISO 1461 compliant)
